Precision Laser Cutting Systems by Alpha Lazer for Maximum Power

Fiber Pro - Fiber Laser Cutting

Alpha Lazer Fiber Pro is a state-of-the-art line of flying-optics CNC laser cutting machines for the sheet metal fabrication industry. We are proud to offer solutions to meet all budgets and performance expectations, covering a wide range of different sheet sizes. Cutting sizes range from 5′ x 10′ up to 8′ x 40′ and feature high quality parts from IPG Photonics, Siemens and Precitec.

TOP-OF-THE-LINE STANDARD FEATURES

Tables sizes: 5′ x 10′ up to 8′ x 40′, XL formats available
IPG Photonics® Laser Source: 3 kW to 30 kW
Direct Drive Helical Rack & Pinions
Siemens® Controller, Drives and Motion
Lantek® Expert Cut Nesting CAD/CAM Software

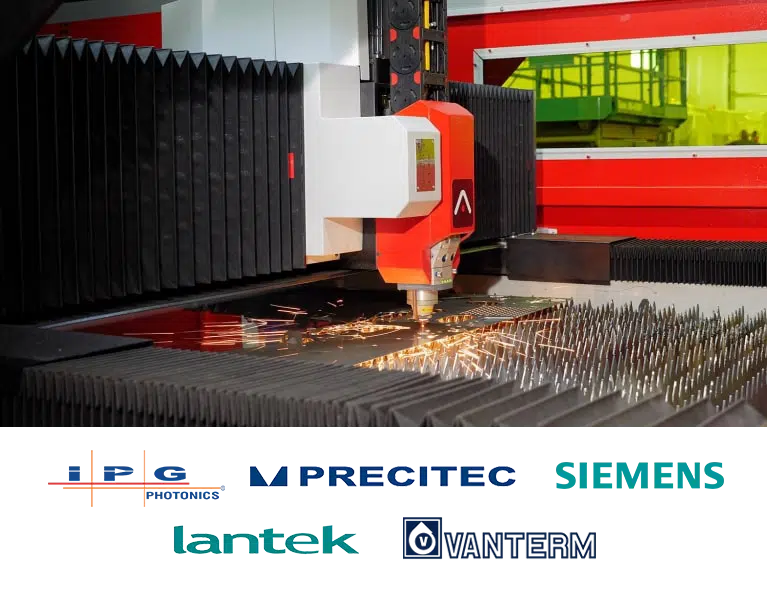

Precitec® Procutter laser cutting head
Vanterm® High Efficiency Dust Collector
Rigid, Steel, Welded Frame & Gantry
Motorized Lateral Scrap removal
Automatic Dual Shuttle Table
Safety Light Curtains
Safety and protective measures correspond to the current local certification guidelines
CSA / UL approved

IDEAL FOR THESE INDUSTRIES:

Our equipment can handle a wide range of laser cutting applications
including sheet metal, pipe and tube, to fine machining fabricators.
Countless manufacturers serving the following industries have
all benefited from our industrial fiber laser systems:

Automotive
Agricultural
Medical
Food Service
Aerospace
Construction
Trailer Manufacturing
Many more.

TECHNICAL DATA:

Cutting Zone Widths: 5′, 6′, 8′, 10′
Cutting Zone Lengths: 10′ to 52′
Max. Combined Speed: up to 6,600 IPM (170 m/min)
Repeatability: 0.002” (0.05 mm)
Positioning Accuracy: 0.002” (0.05 mm)

Download our laser brochure

WIDE RANGE OF OPTIONS AVAILABLE:

Custom Over-sized Systems
Automatic Nozzle Changer System
Automatic Load/Unload & Stacker/Tower Systems
Siemens® Linear System : Max. Combined Speed fog 11,116 IPM
Precitec® Procutter 2.0 ZOOM
Bevel Head (±45°)

We Provide Peace of Mind

We provide peace of mind… so you can focus on growing your business. At Alpha Lazer, our commitment is to provide our customers with unmatched service. Choosing Alpha Lazer means gaining access to top-quality equipment, direct contact with our team of experts, specialized assistance, and prompt technical support. In summary, we are there for you when you need us the most. Large inventory of parts / On-site installation and training / Lifetime remote technical support
